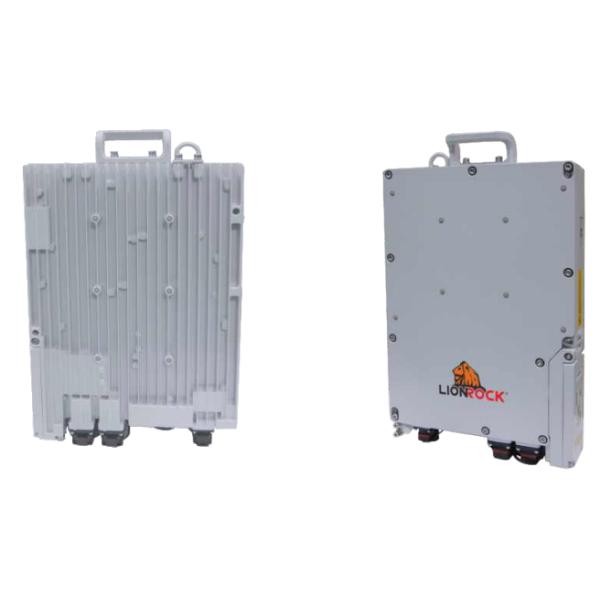

Small Blade Battery 48V DC 25Ah 130x330x450mm Size With 8 Max Parallel Number

Name: Small Blade Battery 48V DC 25Ah 130x330x450mm Size With 8 Max Parallel Number
Brand: LionRock
Price: 1 USD

Brand Name : LionRock

Place of Origin : Dongguan China

Payment Terms : TT

MOQ : negotiate

Price : negotiate

Packaging Details : export packing

Delivery Time : negotiate

Certification : CE, UN38.3

Voltage : 48VDC

Rated Charging Voltage : Boost charging: 55.5VDC

Capacity : 25Ah (C5, 25ºC)

Weight : ≤22kg

Dimension : 130mm x 330mm x 450mm

Max Parallel Number : 8

Contact Now

Small Size, Light Weight Blade Power

Introduction

Distributed Blade Power supply is a new generation of distributed power supply solutions designed specifically for small cell sites, like 5G communication tower. The utility model has the advantages of easy installation, easy expansion, maintenance-free, flexible power supply, etc. The utility model is mainly applied to the AC / DC power supply and backup scenarios including Easy Macro, indoor RRU, outdoor RRU, etc.

Features

- Small size, light weight
- Wide operating temperature -40ºC ~ 55ºC (without sun radiation)
- IP65 high degree of protection for harsh environment applications
- Support pole, wall, tower installation

Small Blade Battery 48V DC 25Ah 130x330x450mm Size With 8 Max Parallel Number

General Specification

Voltage	48VDC
Rated Charging Voltage	Boost charging: 55.5VDC
Capacity	25Ah (C5, 25ºC)
Max Charge/Discharge Current	10A/30A (0ºC ~ 45ºC)
Weight	≤22kg
Dimension (W x D x H)	130mm x 330mm x 450mm
Natural Discharge Rate @ 25ºC	<5% (90 days)
Communication Interface	CAN / RS485
Protection	Over charging, over discharging, short circuit, over current, over temperature protection
Certification	CE, UN38.3
Life	10 years @ 25ºC
Operating Temperature	-40ºC ~ 55ºC
Transportation Temperature	-40ºC ~ 60ºC
Storage Temperature	0ºC ~ 40ºC
Relative Humidity	5% ~ 95% (without condensation)
Altitude	≤4000m
Max Parallel Number	8
